Industrial Filter Press Manufacturer & Dewatering Solutions Provider
Engineered for maximum dryness, durability, and cost-effectiveness.Trusted by 500+ clients in mining, wastewater treatment, and chemical processing worldwide.
Global Installations
Manufacturing Excellence
Certified Quality
Technical Support
What is a Filter Press?
A filter press is an industrial liquid/solid separation device that uses pressure filtration to reduce the volume of liquid waste and produce dry filter cakes.
Our advanced filter press machines achieve up to 90% volume reduction, transforming costly slurry disposal into manageable solid waste.
How Filter Presses Work:
- Filling: Slurry is pumped into chambers between filter plates
- Filtration: Pressure forces liquid through filter cloth
- Compression: Membrane plates squeeze for extra dryness

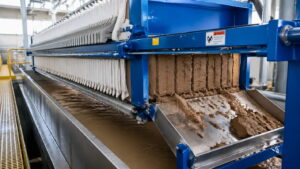

- Discharge: Plates separate to release dry filter cakes
Convert liquid waste to stackable solids
Reclaim metals, chemicals, and water
EPA and local compliance guaranteed
Filter Press Solutions for Every Industry Need
From small laboratory units to large-scale industrial systems, we manufacture filter presses tailored to your specific separation challenges.
1. Standard & High-Efficiency Series
Industry-proven designs for reliable daily operation.
Top Models:

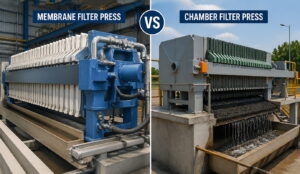

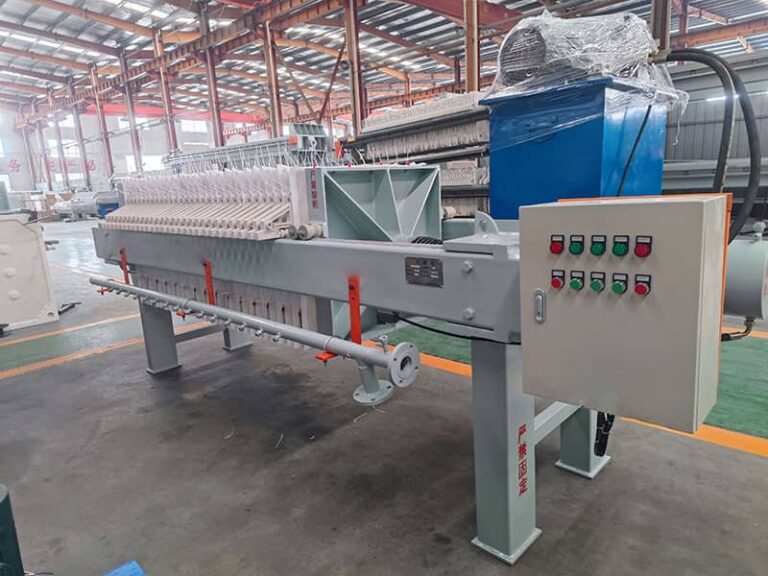

- Membrane Filter Press: For lowest cake moisture and faster cycles.
- Recessed Chamber Press: The cost-effective industry standard.
- Auto Quick Opening: Discharges cakes in minutes for high-throughput projects.
- Vibrating Press: Automated cake discharge for sticky sludges.
2. Material-Specific & Sanitary Series
Designed for corrosive environments, high temperatures, and GMP hygiene standards.
Top Models:
- Stainless Steel (SUS304/316): FDA-compliant for food & pharma.
- Cast Iron Filter Press: Withstands high temperatures up to 300°C.
- Plate & Frame SS: Precision filtration for blood products and fine chemicals.
- Gasketed CGR: 100% leak-free design for toxic or precious liquids.
3. Specialized & Automatic Solutions
Advanced configurations for complex operational requirements.
Top Models:
- High-Pressure Filter Press: Up to 20-30 bar for difficult-to-dewater materials.
- Automatic Mobile Press: Skid-mounted systems on wheels for multi-site use.
- Vertical Filter Press: Gravity-assisted design for specialized chemical washing.
4. Small Scale & Pilot Testing
Economical choices for laboratories, universities, and small batch production.
Top Models:

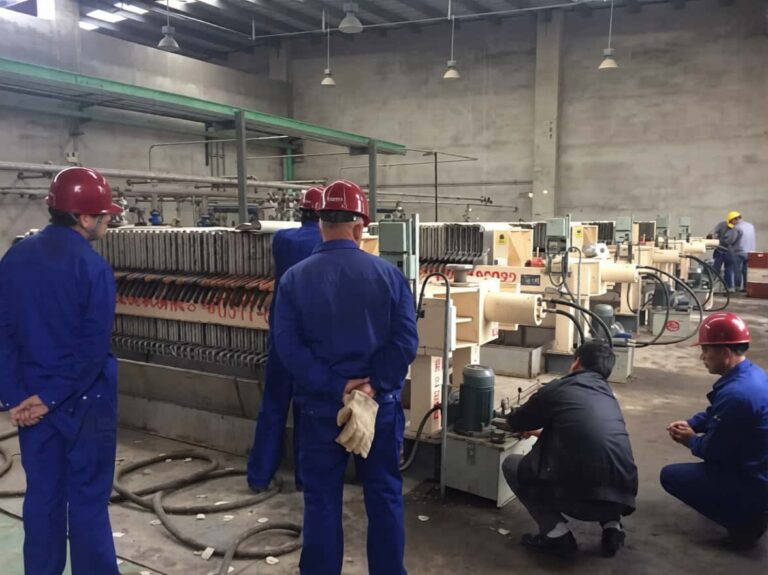

- Laboratory Filter Press: Simulate full-scale production data accurately.
- Manual Jack Press: Electricity-free, simple operation for small workshops.
Filter Press Technical Specifications & Selection Guide
| Model Type | Filter Area | Pressure Range | Cake Dryness | Cycle Time | Price Range |
|---|---|---|---|---|---|
| Membrane Press | 5-1000 m² | 0.6-2.5 MPa | 60-75% | 30-90 min | $$$$$ |
| Chamber Press | 1-800 m² | 0.6-1.6 MPa | 40-55% | 45-120 min | $$$ |
| High-Pressure | 10-500 m² | 2.0-3.0 MPa | 65-80% | 60-150 min | $$$$$$ |
Not sure which model fits your needs?
Use Our Sizing Calculator | Detailed Comparison Tool
Full Catalog
Don’t see exactly what you need? We offer 100% Customization.
From plate size to automation level, we build the machine to fit your process.
Technical Advantage: Engineered for Performance
| Feature | Specification Range | Benefit |
|---|---|---|
| Filter Area | 1 m² to 1000 m² | Scalable from pilot tests to mega-projects. |
| Plate Size | 320mm to 2000mm | Flexible sizing for limited footprints. |
| Feeding Pressure | 0.6 MPa to 2.5 MPa | High pressure ensures drier filter cakes. |
| Automation | PLC / HMI Integration | Reduces labor costs and human error. |
Industries We Serve
Filter Press Applications

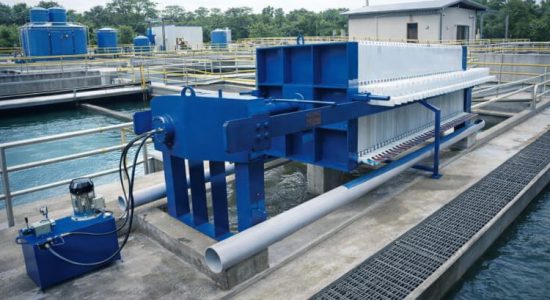

Wastewater Treatment
Municipal sludge, textile printing, and dyeing wastewater.
Mining & Metallurgy
Copper, gold, zinc, and iron ore tailings; coal washing.

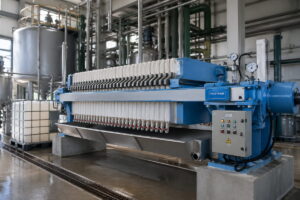

Chemical Industry
Pigments, silica, caustic soda, and fertilizer production.
Food and Pharma
Sugar refining, edible oil fractionation, and beer clarification.
Ceramics & Stone
Kaolin clay, ceramic slip & granite cutting water recycling.
About us
Premium Filter Press Manufacturer
With over 25 years of expertise in industrial filter presses manufacturering, we design custom chamber, membrane, and plate & frame filter presses for wastewater, mining, and chemical industries., our team is dedicated to excellence.
- ISO 9001:2015 Certified Manufacturing
- CE Certified for European Market
- Exported to 30+ Countries: USA, Vietnam, Indonesia, Brazil, Russia, South Africa, etc.
Why Choose Us as Filter Press Supplier
We don’t just sell machines; we provide complete filtration solutions. As a premier manufacturer, we specialize in advanced filter press technology designed to optimize your process efficiency and reduce disposal costs.
Robust Construction
Heavy-duty steel frames designed for high-pressure operations (up to 25 bar).
Automated Systems
Fully automatic PLC control, plate shifting, and cloth washing options.
Customization
Tailored filter plate sizes, cake thickness, and filtration areas to match your capacity.
Global Support
Fast shipping of spare parts and online technical guidance.
Why Global Leaders Choose Our Filter Press Equipment
Contact Us
Get a customized filter press solution designed for your specific application
