Filter Press

Filter Press

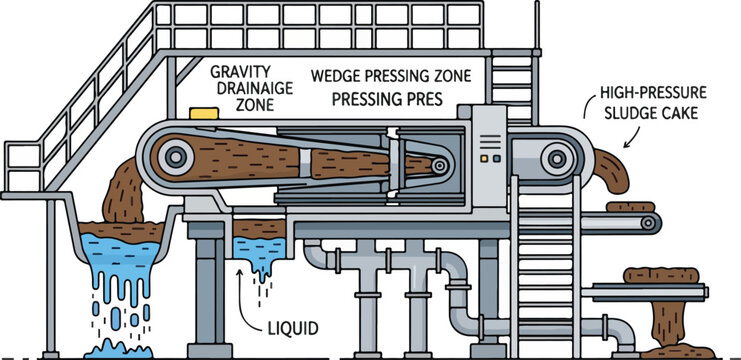

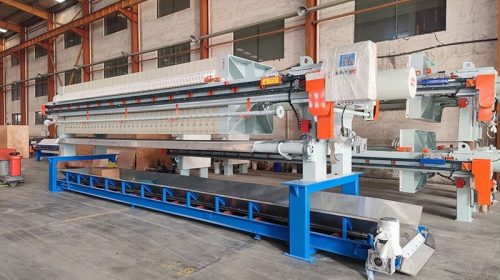

Filter Press is common equipment for solid-liquid separation in different industries. Mainly it can be divided into four types: chamber pressure filter, membrane pressure filter, belt press filter, plate and frame press filter. With the advantage of simple structure, easy operation and good filtration effect, the filter press machines are widely used in chemistry, pharmacy, petroleum, mining, metallurgy, foodstuff, textile, printing and dyeing, paper making, sewage treatment and other industries

As a professional filter press manufacture, Golden Triumph Group Co., Ltd can produce any type filter press machine according to different customers' requirements.

1. The structure and operating principle

Filter press mainly consists of steel frame, filter plate, pressing system and electric control cabinet.

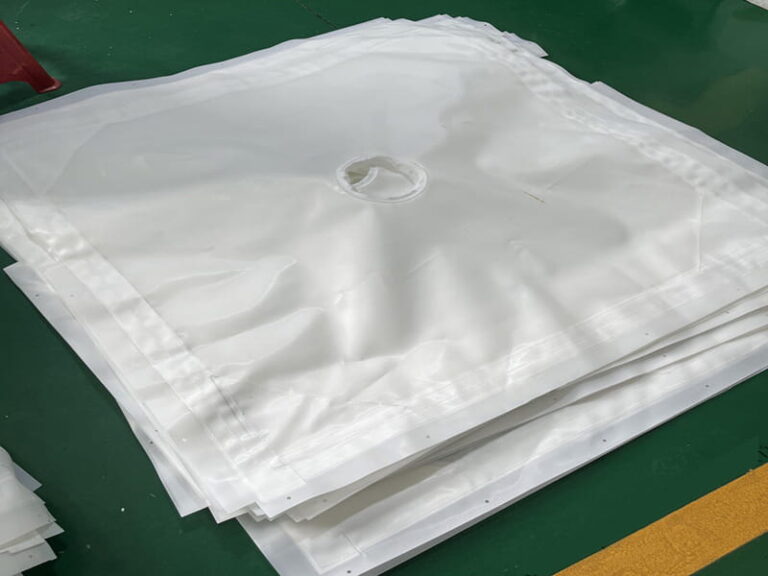

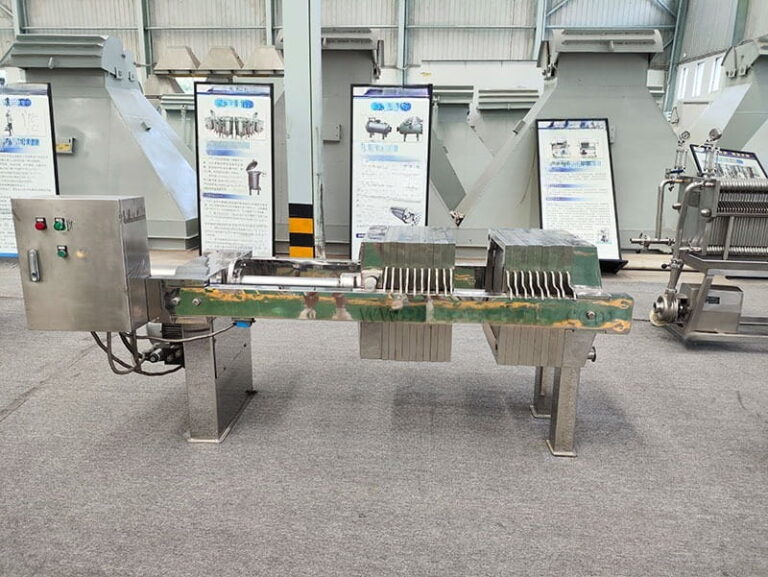

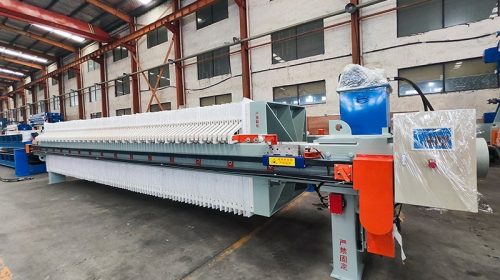

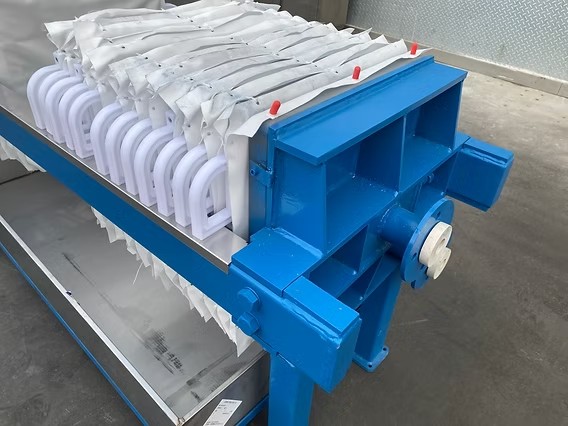

The frame, which supports the press device and filter plates, consists of steel base, push plate, tail plate, and beam. The filter plates are installed on beam and between push plate and tail plate. And the filter cloth is sandwiched between filter plates. During filter press operation, the press device drives the push plate to press the filter plates and filter cloth between pus plate and tail plate. And then filter chambers will be formed between pressed filter plates. The materials will be pressed into the filter chambers through the feeding port in tail plate. Solid particles will be trapped in the filter chambers and formed to be filter cakes, while the liquid will be discharged out of the press filter machine through pressed cake and filter cloth. If the filter cake needs to be washed, washing water can be supplied through the washing port in the tail plate. If the filter cake needs to be dried, compressed air can also be supplied through the washing port. Plate and frame type filter press is the same with chamber or recessed filter press machine in structure. There is one difference that the filtration part is assembled by one plate, one frame and one filter cloth and the filter chamber is formed between plate and frame. Liquid stream of filter press can be divided into internal stream and external stream. The internal stream means the filtered liquid will be first collected from each filter plate and then be discharged out of pressure filter through filtrate port. The external stream means the filtrate will be directly discharged for the outlet port of filter plate.

2. Filter Press Model

Mainly we have the following model filter press for sale: 320, 450, 630, 800, 1000,1250,1500,2000 and so on.

3. Filtration Area

We can produce the pressure filter with filtration area up to 2000 m2

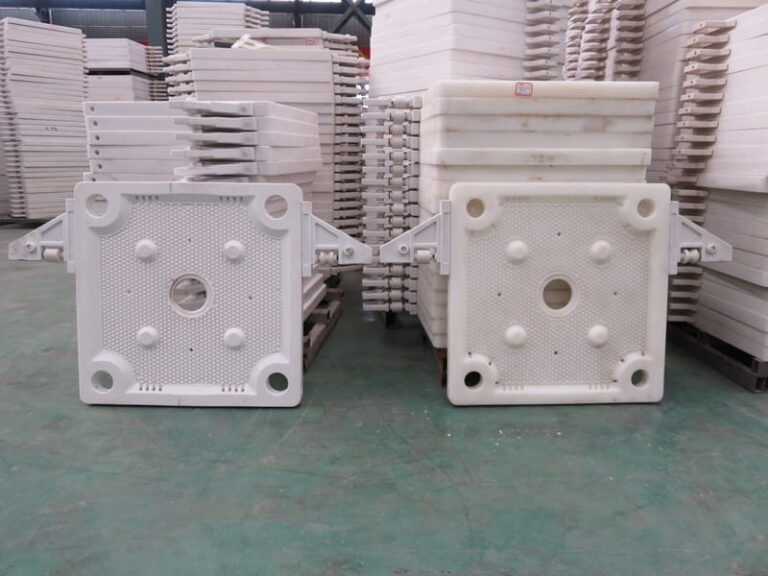

4. Filter Plate materials

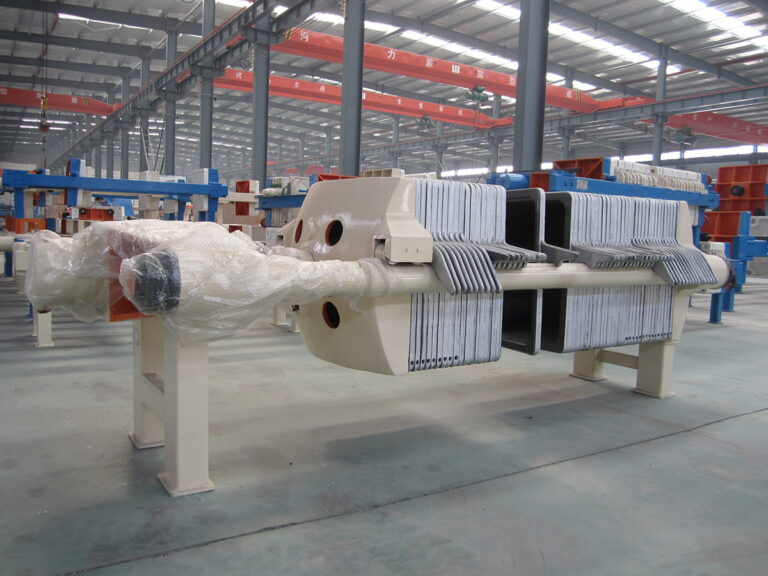

Cast Iron, rubber, reinforced polypropylene, glass fiber polypropylene, etc

5. Press system

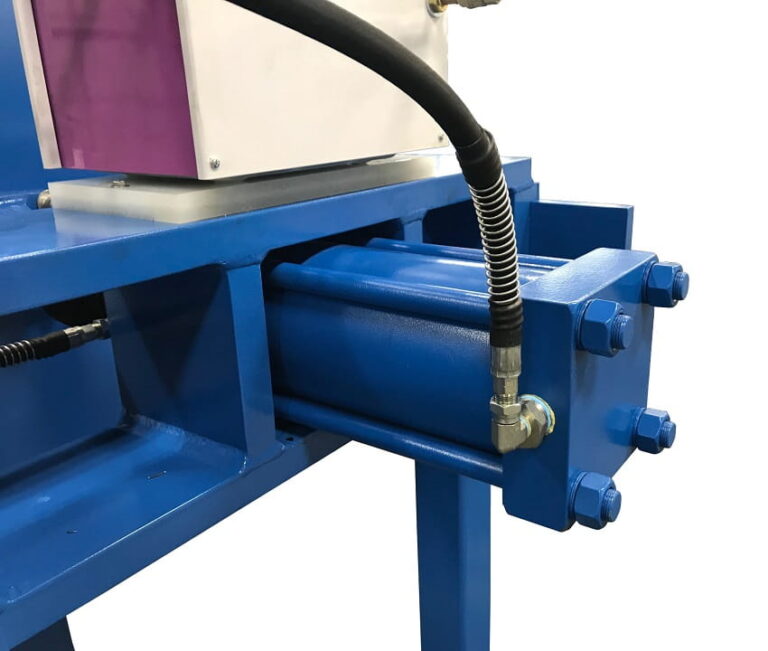

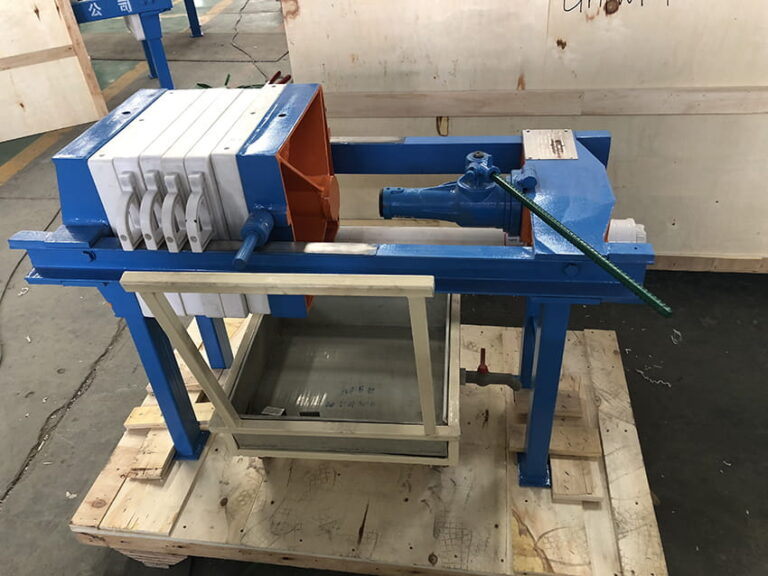

The pressure power of filter press can be produced by hydraulic system, mechanical system and manual system.

Golden Triumph Group Co., Ltd can also design the special custom press filter according to clients' detailed requirements. Each year Golden Triumph Group will invest much money to make research on the new technology of filter press.  Good material, advanced technology and strict quality control make GT brand pressure filter products win good reputation among customers. The goal of Golden Triumph Group is to be the top filter press manufacture in the world. And Golden Triumph Group will always require himself to improve 1% every day to better serve for our customers.

Any question about filter press machines, please feel free to contact us. We will always be happy to answer your questions and recommend suitable filter press for you.

  • Filter Press MachinesFilter Press MachinesApril 20, 2017Filter Press Machine is equipment which make pressure on the filtration material to get solid-liquid separation. With the advantage of simple structure, convenient operation and good filtration performance, f...view
  • Industrial Filter PressIndustrial Filter PressApril 20, 2017As a professional industrial filter press manufacturer, Golden Triumph Group has supplied different press filter products to many industries. Mainly the industrial filter press machine can be used in ...view

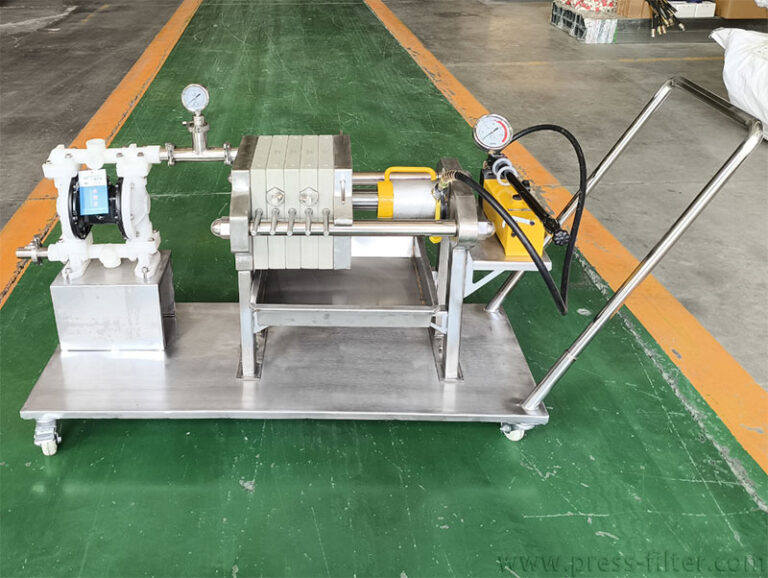

  • Other Filter PressOther Filter PressJune 27, 2017Except for the common filter press machines; there are some other special use filter presses. Golden Triumph Group can produce other special filter press, like the laboratory filter press, cotton cake...view
